Sheet Piles (Hat-Type)
Specification: JIS A5523:2006 / JIS A5528:2006
Specification: JIS A5523:2006 / JIS A5528:2006

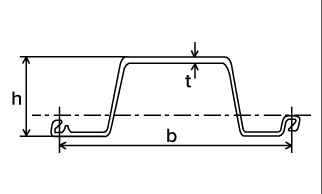

Product Diagram:
Product Image:
.jpg)
| Type | Dimension | per pile | per meter run | ||||||||
| b | h | t | Mass | S. Area | Ix | Zx | Mass | S. Area | Ix | Zx | |
| mm | mm | mm | kg/m | cm2 | cm4 | cm3 | kg/m2 | cm2/m | cm4/m | cm3/m | |
| SM-J | 600 | 200 | 13 | 87.3 | 111.2 | 7,250 | 705 | 145 | 185.3 | 12,090 | 1,175 |
| SKSP-10H | 900 | 230 | 10.8 | 86.4 | 110.0 | 9,430 | 812 | 96.0 | 122.2 | 10,500 | 902 |
As the interlock of Hat-Type sheet piles is not in line with the neutral axis, reduction Factor taking account of a possible lack of shear force transmission along the interlocks does not apply.
