PRODUCTS

Hollow Sections

Circular Hollow Sections (Hot Finished)

products

Circular Hollow Sections (Hot Finished)
Specification: BS EN 10210-1:2006
Dimension: BS EN 10210-2:2006
Tolerance: BS EN 10210-2:2006

Product Diagram:

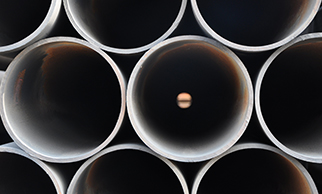

Product Image:

Outside Diameter (mm)	Mass (kg/m)
Outside Diameter (mm)	Thickness, t (mm)
D	2.3	2.6	3.2	4	5	6.3	8	10	12.5	14.2	16	20	25	30	40	50	60
21.3	1.08	1.20	1.43
26.9	1.40	1.56	1.87
33.7		1.99	2.41	2.93
42.4		2.55	3.09	3.79
48.3		2.93	3.56	4.37	5.34
60.3		3.70	4.51	5.55	6.82
76.1		4.71	5.75	7.11	8.77
88.9			6.76	8.38	10.3	12.8
101.6			7.77	9.63	11.9	14.8	18.5	22.6
114.3			8.77	10.9	13.5	16.8	21.0	25.7
139.7				13.4	16.6	20.7	26.0	32.0	39.2
168.3				16.2	20.1	25.2	31.6	39.0	48.0
177.8					21.3	26.6	33.5	41.4	51.0
193.7					23.3	29.1	36.6	45.3	55.9	62.9	70.1
219.1					26.4	33.1	41.6	51.6	63.7	71.8	80.1	98.2
244.5					29.5	37.0	46.7	57.8	71.5	80.6	90.2	111	135
273					33.0	41.4	52.3	64.9	80.3	90.6	101	125	153
323.9					39.3	49.3	62.3	77.4	96.0	109	121	150	184
355.6						54.3	68.6	85.2	106	120	134	166	204
406.4						62.2	78.6	97.8	121	137	154	191	235	278	361
457						70.0	88.6	110	137	155	174	216	266	316	411
508						77.9	98.6	123	153	173	194	241	298	354	462	565
610						93.8	119	148	184	209	234	291	361	429	562	691
711						109	139	173	215	244	274	341	423	504	662	815	963
762						117	149	185	231	262	294	366	454	542	712	878
813							159	198	247	280	314	391	486	579
914							179	223	278	315	354	441	548	654
1016							199	248	309	351	395	491	611	729
1067								261	325	369	415	516	642	767
1168								286	356	404	455	566	705
1219								298	372	422	475	591	736
