Square Hollow Sections (Hot Finished)
Specification: BS EN 10210-1:2006
Dimension: BS EN 10210-2:2006
Tolerance: BS EN 10210-2:2006
Specification: BS EN 10210-1:2006
Dimension: BS EN 10210-2:2006
Tolerance: BS EN 10210-2:2006

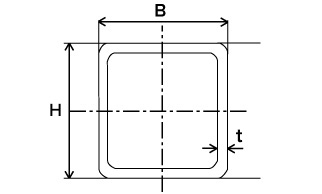

Product Diagram:

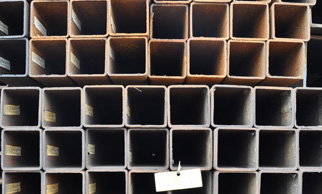

Product Image:
| Size (mm) | Mass (kg/m) | |||||||||
| Thickness, t (mm) | ||||||||||
| H / B | 3.2 | 4 | 5 | 6.3 | 8 | 10 | 12.5 | 14.2 | 16 | 20 |
| 40 | 3.61 | 4.39 | 5.28 | |||||||
| 50 | 4.62 | 5.64 | 6.85 | 8.31 | ||||||
| 60 | 5.62 | 6.90 | 8.42 | 10.3 | 12.5 | |||||
| 70 | 6.63 | 8.15 | 9.99 | 12.3 | 15.0 | |||||
| 80 | 7.63 | 9.41 | 11.6 | 14.2 | 17.5 | |||||
| 90 | 10.7 | 13.1 | 16.2 | 20.1 | ||||||
| 100 | 11.9 | 14.7 | 18.2 | 22.6 | 27.4 | |||||
| 120 | 17.8 | 22.2 | 27.6 | 33.7 | 40.9 | |||||
| 140 | 21.0 | 26.1 | 32.6 | 40.0 | 48.7 | |||||
| 150 | 22.6 | 28.1 | 35.1 | 43.1 | 52.7 | 58.9 | 65.2 | |||
| 160 | 24.1 | 30.1 | 37.6 | 46.3 | 56.6 | 63.3 | 70.2 | |||
| 180 | 27.3 | 34.0 | 42.7 | 52.5 | 64.4 | 72.2 | 80.2 | |||
| 200 | 30.4 | 38.0 | 47.7 | 58.8 | 72.3 | 81.1 | 90.3 | |||
| 220 | 41.9 | 52.7 | 65.1 | 80.1 | 90.1 | 100 | ||||
| 250 | 47.9 | 60.3 | 74.5 | 91.9 | 103 | 115 | ||||
| 260 | 49.9 | 62.8 | 77.7 | 95.8 | 108 | 120 | ||||
| 300 | 57.8 | 72.8 | 90.2 | 112 | 126 | 141 | ||||
| 350 | 85.4 | 106 | 131 | 148 | 166 | |||||
| 400 | 122 | 151 | 170 | 191 | 235 | |||||
Negligible residual stress
Weldable in corner region
Tighter Corner Profile
Weldable in corner region
Tighter Corner Profile
